How to Create a Super Video CD (SVCD)

A Super Video CD can hold about 35 to 60 minutes of video, along with a stereo audio track. Most DVD players can play SVCD discs, which are recorded to CD. The video quality is similar to VHS tape. In order to create a SVCD from your captured video files, you must first encode the video to SVCD format. When your video files are in MPEG-2 format, you are ready to create a SVCD. This process is called "authoring". Authoring is the process of choosing the video segments to include on the disc, as well as creating the menus. GEAR will automatically generate all of the necessary files and structures when you are finished authoring the title.

How to author a SVCD title

To author a SVCD, choose "Author SVCD Title..." from the "Author" menu.

Author Menu

The New Video project dialog box appears...

Give the project a name, and choose the video format (NTSC or PAL), and the disc size. Press "Create" to start authoring the title.

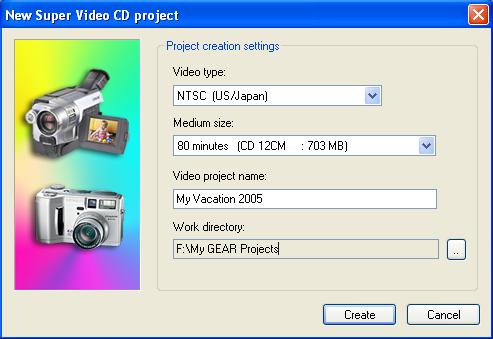

New SVCD Project

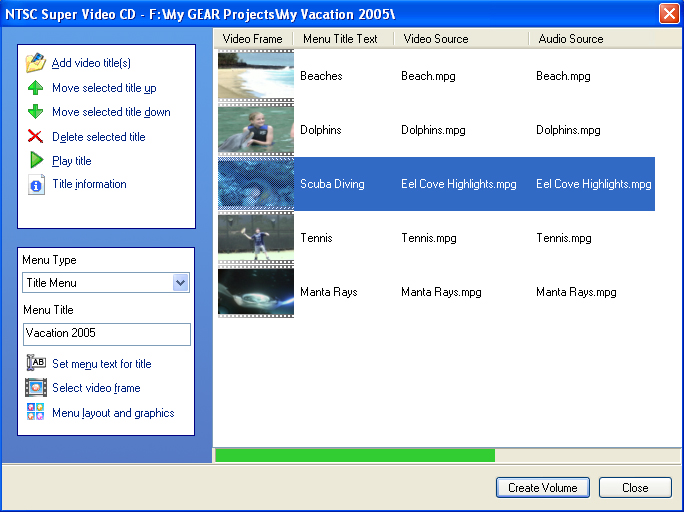

The SVCD authoring window appears..


You can "add video titles" to the title. This button will let you select video files that are encoded to SVCD specifications (MPEG-2). The audio should be contained in the same MPEG file as the video.

You can double-click the menu title text, and edit the label (in this example, the first label is "Beaches"). You can move titles up or down, to change the order of playback, or you can delete a title from the disc.

Under "Menu Title", you can enter the title that will be at the top of the main menu.

To adjust the video frame that will be used for the menu thumbnail, select the video title (click on it), and select "Select Video Frame" (or just double-click on the title). The video frame selection window appears...

You can play and preview the video, or use the slider control to go to a particular place in the video. When you have found the best video frame (still picture) to represent this video title, choose "Select Frame". Close the window when you are finished. The thumbnail displayed in the authoring window, and on the menu should now be the chosen frame.

Video Frame Selection

The "Menu Type" allows you to select "No Menu" (in which case the video just plays, with each title played in the order that they are arranged), or "Title Menu", which automatically creates a menu that allows you to access each title individually.

To set your menu options, select "Menu Layout and Graphics" from the video authoring window. The menu editing window appears...

DVD Menu Settings

Each title will automatically be arranged with a thumbnail video still picture. You can select the grid to place each title thumbnail on. Font sizes, type, and color can be adjusted from the font menu tab. Select a shadow offset to add three dimensional depth to the text on the screen. A background image can be selected, and faded if necessary. To select a frame of video as your background image, press the ".." button next to the background image filename. A window will appear asking you to select a file. Set the "files of type" to video, and select the video file that you want. The video frame selection window will appear, allowing you to play the video to choose the point that contains the best frame of video for your menu background (this function is described on the preceding page). Press "select frame" when you get to the video frame that you would like to use for your menu background.

When the menus are ready, press OK.

When your SVCD is authored, press "Create VCD" to create your title. This will return you to the main GEAR project interface. Your new SVCD title will be loaded into a new SVCD project (volume) in GEAR, ready to write to disc. You can add any additional files to the disc (in the remaining space available), and burn it when you are ready.

Note: SVCD titles can be played back in most, but not all DVD players. They can also be played using a PC with the appropriate media player software.
